| Oscillator Circuit Fourteen |

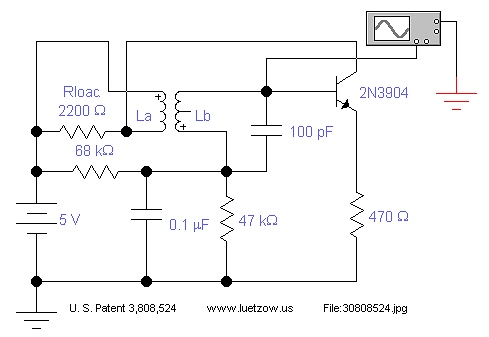

Oscillator Fourteen uses inductors La and Lb for the resonant circuit and the

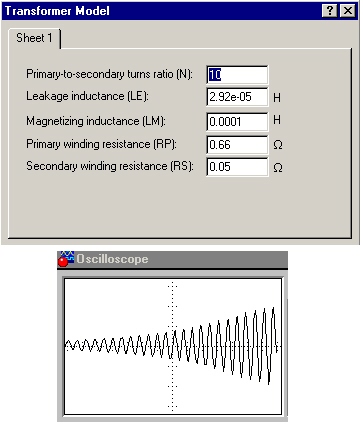

oscillator feedback generation method. The Inductors are modeled as a
transformer with the transformer model data shown below in EWB 5.12 format.
The oscilloscope waveform shows the oscillator startup waveforms.
oscillator feedback generation method. The Inductors are modeled as a
transformer with the transformer model data shown below in EWB 5.12 format.
The oscilloscope waveform shows the oscillator startup waveforms.
