Oscillator Three, a Single PNP Transistor
Oscillator
Go To Home
Page

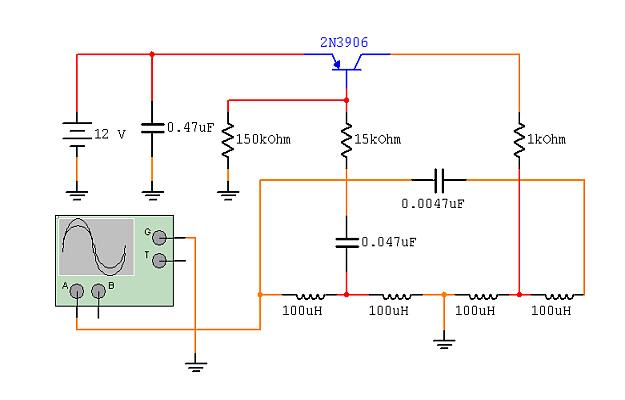

Oscillator Three presents a single PNP
transistor oscillator circuit which was
part of a larger circuit for a metal
detector presented in U. S. Patent
4,099,116.

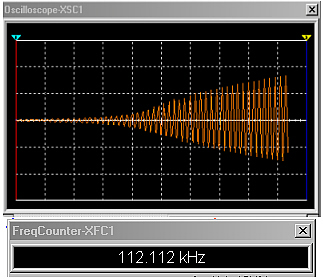

The oscilloscope chart shown on the
left shows the Multisim 7 spice
program output as the circuit oscillator
function starts to oscillate..
